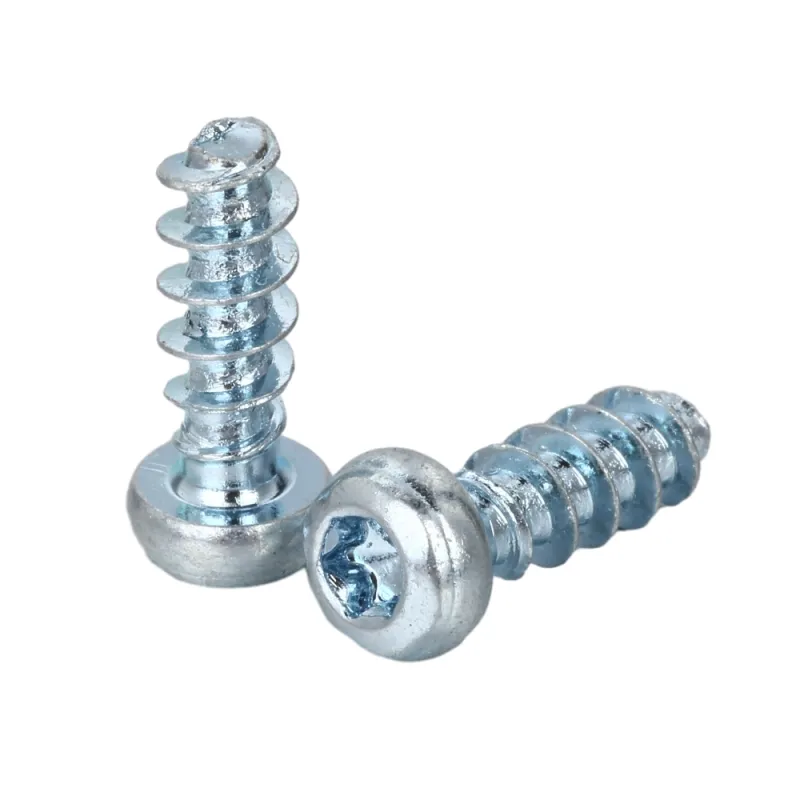

Pan Head TORX Forming Screw For Plastic

Optimized Fastening Solution for Plastic Assemblies

This Pan Head TORX Forming Screw is specifically engineered for secure fastening in soft substrates such as plastics, nylon, and similar materials frequently used by OEMs and contract manufacturers. As a product from an established self tapping screw manufacturer, it targets professionals requiring consistent thread forming screws to mitigate stripping and torque challenges during assembly. Its design suits applications demanding precise engagement without pre-tapped holes, streamlining workflows in component fabrication and assembly lines.

Advanced Thread Geometry and Torque Reduction Capabilities

Featuring a double-lead thread configuration with wider spaced threads, this self tapping screw enables rapid thread formation while minimizing insertion torque. The lower thread’s reduced height and unique geometry enhance pull-out strength, supporting improved joint integrity. Additionally, the serrated washer underside delivers effective locking and lowers the risk of over-reaming in plastic substrates. The TORX drive paired with a gimlet point optimizes driving accuracy and self-starting capability, combining to ensure reproducible performance metrics in production environments.

Versatility across Multiple Industrial Applications

Widely applicable in sectors such as consumer electronics, small appliances, and furniture manufacturing, this forming screw offers dependable fastening solutions for lightweight plastic housings and nylon components. By maintaining compliance with RoHS standards, it fits seamlessly into green manufacturing protocols. Integrators value its ability to reduce operational downtime and component defects, particularly in prototyping and high-volume assembly where consistent self tapping metal screw performance directly impacts production yields.

Product Advantages

Ingenious Structural and Design Innovations

This pan head TORX forming screw integrates a double-lead thread design strategically engineered to reduce installation torque and prevent thread stripping, a key advancement by this self tapping screw manufacturer. The serrated washer underside functions both to lock the fastener securely and to relieve drive torque during seating, improving joint stability in soft substrates. The combination of a gimlet point and TORX drive ensures efficient self-tapping and precise torque transfer, representing a thoughtfully developed system that enhances assembly reliability within mechanical fastening protocols.

Enhanced Usability and Consistent Performance Outcomes

From a usability standpoint, this forming screw delivers rapid installation without compromising connection strength, essential for manufacturing lines prioritizing throughput and quality assurance. Its robust pull-out resistance supports durability in plastic assemblies subjected to dynamic loads, while the reduced driving torque simplifies tool requirements and operator ergonomics. The product, supplied by a reputable custom screw manufacturer, enables seamless integration with automated fastening tools, optimizing process control and reducing warranty risks associated with screw failure in plastic components.

A thread forming tapping screw with wider spaced threads than a Type-AB and a gimlet point.

A thread forming tapping screw with spaced threads and a gimlet point.

A slotted hex washer head thread forming tapping screw with serrations on the underside of the washer face, spaced threads and a gimlet point.

A thread forming screw with a double-lead, consisting of a high and low thread. The lower thread varies in height from 1/3 to 1/2 that of the higher thread, which is sharper and flatter than a standard thread.

A thread forming tapping screw with spaced threads and a blunt point with incomplete entering threads.

For self starting in thin (.015-.050 thick) metal or resin-filled plywood. 18-8 Stainless steel tapping screws may be used in applications which require general atmospheric corrosion resistance. Fastening stainless steel parts to aluminum or steel can cause a type of corrosion known as a galvanic couple in some environments.

For self starting in thin metal or resin-filled plywood. Recommended over a Type-A, particularly in brittle materials.

The serrations on the underside of the washer face allow this part to perform two main functions: (1) act as a locking fastener, and

(2) break drive torque during installation which lessens the chance of reaming out the mating hole in the bearing surface. The

torque-breaking feature slows the rotation of the screw when it meets the mating surface. The serrations aloow for more pitch

body diameter under the head giving the mating sheet metal more travel so as not to snap over the last bit of major diameter

thread crest. Appliance manufacturers use these screws to reduce the thickness of the sheet metal they require, which reduces the

cost of production.



Use Scenarios

Application in Consumer Electronics Enclosure Assembly

Within the consumer electronics sector, this self tapping screw plays a critical role in securing plastic housings of devices such as routers, smart home systems, and portable gadgets. Operating in environments demanding lightweight and durable fastening solutions, it capitalizes on its thread forming properties to avoid pre-tapping and reduce assembly time. The torque-reducing design aids compliance with torque specifications critical to maintaining integrity of delicate plastic shells. Integration into automated assembly stations ensures consistent thread formation, augmenting throughput while minimizing rework and failures.

Role in Furniture Manufacturing for Plastic Panel Fastening

In furniture production environments involving plastic panels and nylon mountings, this forming screw offers reliable fastening that addresses the challenges of variable substrate densities and thicknesses. Its wider spaced threads decrease driving torque, reducing tool wear and operator fatigue during manual or semi-automated fastening steps. Proven compatibility with lightweight assemblies supports ergonomic yet durable constructions, while serrated washer locking prevents loosening under vibration. This product, provided by an experienced self tapping screw manufacturer, enhances manufacturing yield and product longevity within the furniture supply chain.

FAQ

What types of materials are suitable for using the Pan Head TORX Forming Screw For Plastic?

Our Pan Head TORX Forming Screw is designed primarily for plastic, nylon, wood, and other soft substrates. These materials work well with its double-lead thread and wider thread spacing, which ensure secure fastening and low driving torque during installation.

Can Himore provide custom screw solutions for specific applications?

Yes, as a professional custom screw manufacturer, we offer OEM and ODM services from design to mass production. You can provide drawings or requirements, and we will tailor the screw specifications—including thread type, drive, and material—to fit your project needs.

How does the Pan Head TORX Forming Screw reduce installation challenges?

This self-tapping screw features a TORX drive and a gimlet point for precise, easy self-starting. The serrated washer underside helps lock the screw in place while reducing drive torque, minimizing thread stripping and over-reaming risks during installation.

What logistics and standards does Himore follow to ensure fastener quality and consistency?

We comply with international standards such as DIN, ISO, ANSI/ASME, and JIS for materials and dimensions. Our inventory includes fasteners ranging from grades 4.8 to 12.9, and we maintain detailed technical data to guarantee consistent quality for all self tapping screw and related hardware deliveries.
