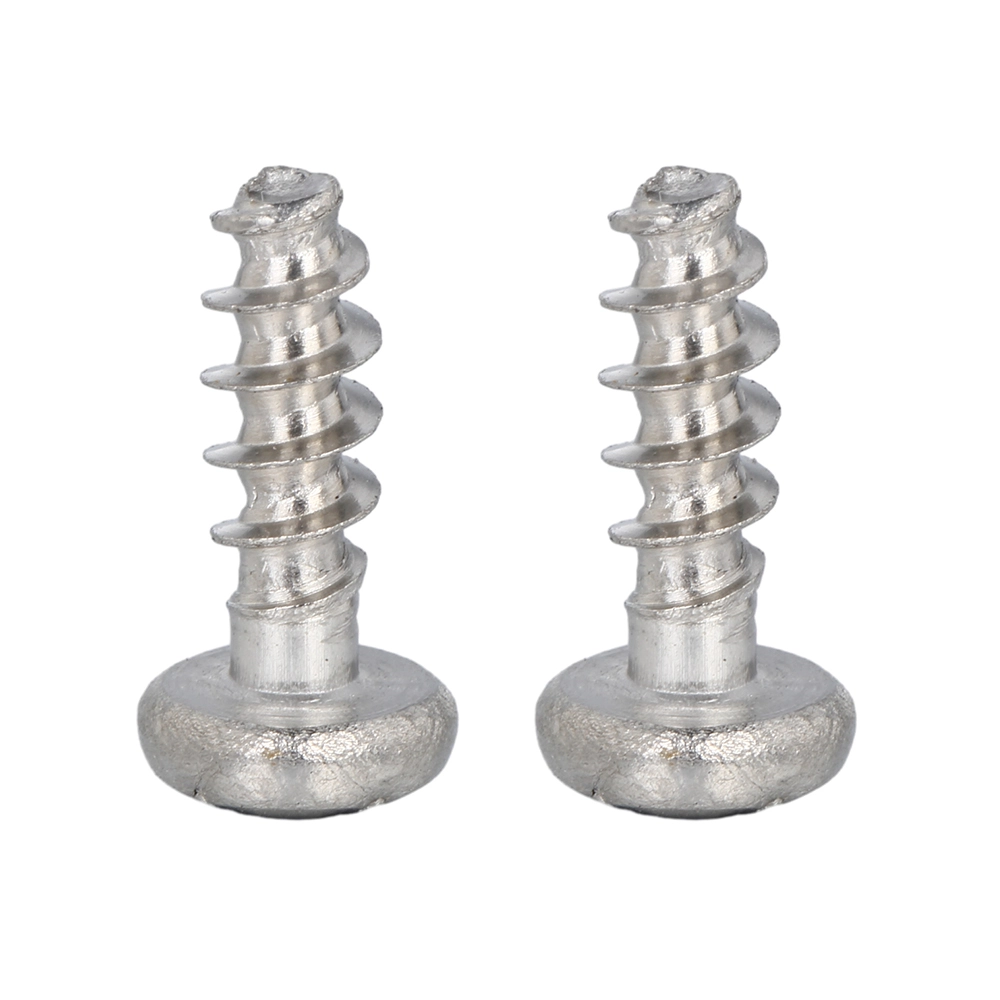

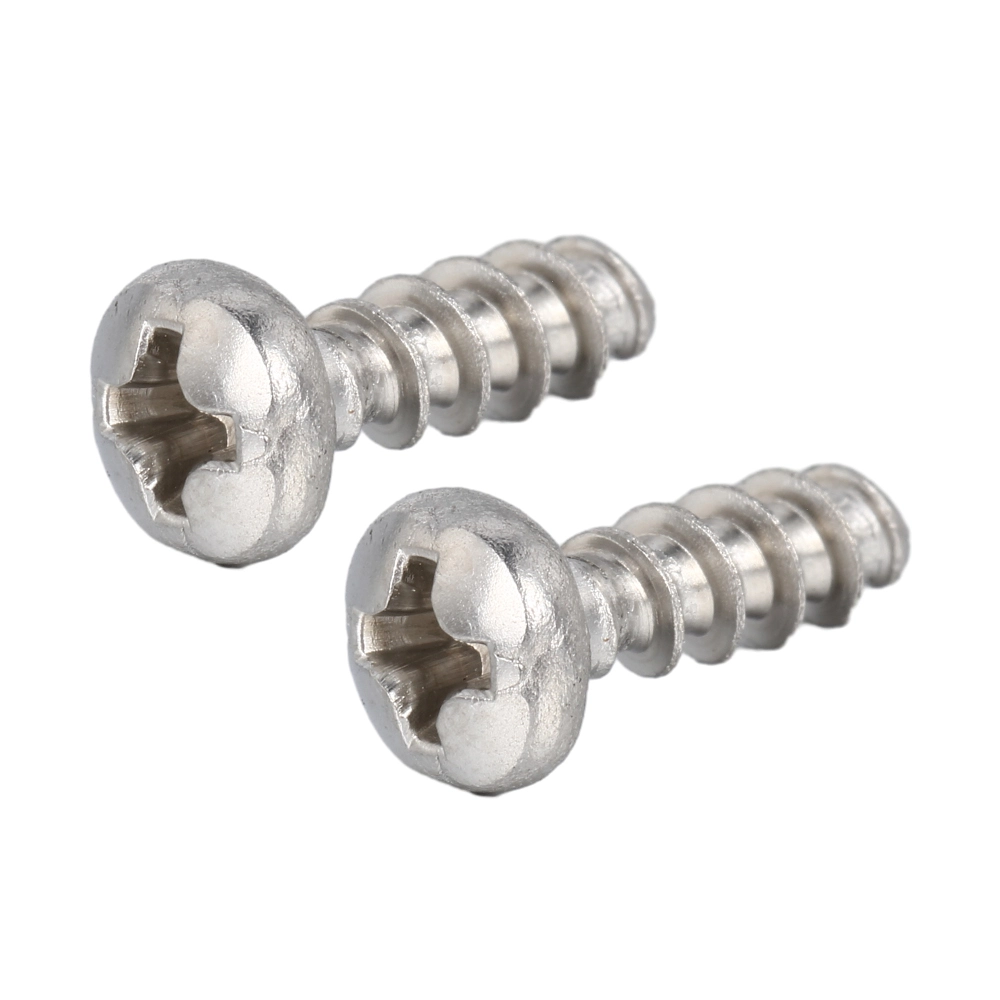

Pan Head Phillips Stainless Steel Forming Screw

Functional Design for Precision Fastening in Assemblies

This pan head Phillips self tapping screw is engineered for professionals requiring reliable fastening solutions in substrates such as plastic, nylon, and wood. Designed with the needs of OEMs and system integrators in mind, the fastener addresses challenges in component assembly by enabling efficient thread formation without pre-drilling. The screw manufacturer specializes in tailoring these screws for industries prioritizing RoHS compliance and assembly consistency. As a part of an optimized joining system, this product enables secure seating with reduced installation complexity, ideal for engineers and procurement specialists seeking dependable fastening performance in plastic enclosures and lightweight structural assemblies.

Technical Specifications Enhancing Performance Metrics

Featuring a stainless steel (18-8) composition, this self tapping metal screw boasts corrosion resistance suitable for both internal and external environments. Its form-fitting thread geometry differs from Type-AB screws by incorporating wider thread spacing, which demonstrably lowers driving torque and mitigates thread stripping risks. The blunt entry and double-lead thread design facilitate self-starting in thin materials ranging from .015 to .050 inches, enhancing insertion efficiency. Additional technical characteristics include a gimlet point for precision penetration, a pan head broad bearing surface for uniform load distribution, and serrations beneath the washer to secure the mating interface, collectively optimizing mechanical retention and assembly reliability.

Integration across Industrial Applications for Durable Assemblies

This product delivers tangible value across sectors such as consumer electronics, furniture manufacturing, and lightweight structural assemblies, where plastic housings and nylon components require robust joining methods. Within OEM manufacturing processes, the self tapping screw manufacturer ensures consistency in supply and quality, supporting efficient prototyping and mass production runs. The screws’ RoHS compliance aligns with regulatory requirements for eco-conscious industries, while their use in fast cable enclosures, cabinetry, and light wooden frames exemplifies versatility. The ability to securely join dissimilar materials expands application possibilities, enabling engineers and assemblers to achieve performance standards demanded in advanced product designs.

Product Advantages

Design Advantages Supporting Versatile Assembly Requirements

The structural design integrates a pan head with Phillips drive, facilitating balanced torque application and a neat finish vital for high-precision assemblies. The forming thread configuration reduces material stress by creating secure threads without needing pre-tapped holes, optimizing structural integrity. As a specialized self tapping screw manufacturer, our design incorporates serrations under the washer face, which improve locking strength and reduce driving effort, thereby enhancing automation compatibility. The gimlet point enhances starting capability in thin or resinous substrates, aiding consistent insertion and minimizing material damage. These engineering features collectively support modularity and design flexibility in product assembly lines.

Performance Benefits Enhancing Usability and Reliability

Operational efficiency is improved through reduced driving torque requirements and superior pullout strength, attributes that reduce cycle times and rework rates in mass production environments. The use of stainless steel ensures long-term corrosion resistance, maintaining joint integrity even under harsh environmental conditions. Our customization options allow engineers to specify dimensions and finishes that align precisely with application requirements, promoting supply chain reliability. The screw’s compatibility with multiple substrates decreases inventory complexity, offering a single solution across various materials. These performance factors contribute to optimized total cost of ownership and increased overall system uptime for procurement managers and assembly engineers.

A thread forming tapping screw with wider spaced threads than a Type-AB and a gimlet point.

A thread forming tapping screw with spaced threads and a gimlet point.

A slotted hex washer head thread forming tapping screw with serrations on the underside of the washer face, spaced threads and a gimlet point.

A thread forming screw with a double-lead, consisting of a high and low thread. The lower thread varies in height from 1/3 to 1/2 that of the higher thread, which is sharper and flatter than a standard thread.

A thread forming tapping screw with spaced threads and a blunt point with incomplete entering threads.

For self starting in thin (.015-.050 thick) metal or resin-filled plywood. 18-8 Stainless steel tapping screws may be used in applications which require general atmospheric corrosion resistance. Fastening stainless steel parts to aluminum or steel can cause a type of corrosion known as a galvanic couple in some environments.

For self starting in thin metal or resin-filled plywood. Recommended over a Type-A, particularly in brittle materials.

The serrations on the underside of the washer face allow this part to perform two main functions: (1) act as a locking fastener, and

(2) break drive torque during installation which lessens the chance of reaming out the mating hole in the bearing surface. The

torque-breaking feature slows the rotation of the screw when it meets the mating surface. The serrations aloow for more pitch

body diameter under the head giving the mating sheet metal more travel so as not to snap over the last bit of major diameter

thread crest. Appliance manufacturers use these screws to reduce the thickness of the sheet metal they require, which reduces the

cost of production.




Use Scenarios

Application in Consumer Electronics and Enclosures

In the consumer electronics manufacturing sector, assembling plastic housings and nylon components demands screws that provide secure, repeatable fastening without compromising material integrity. This self tapping screw manufacturer delivers fastening solutions that ensure thread formation within delicate substrates while maintaining compliance with RoHS directives essential to electronic device markets. The pan head Phillips design affords flush seating in housings, minimizing space usage and enhancing aesthetic appeal. Integration into automated assembly lines is facilitated by consistent torque profiles and material compatibility, reducing downtime and improving throughput for assembly operations focused on compact, lightweight devices.

Role in Light Wood and Prototype Furniture Assembly

The fastener serves a critical role in manufacturing lightweight wood panels and prototype furniture, where repeated adjustments and reliable joins are necessary during design iterations. The self tapping metal screw’s thread forming capability eliminates the need for pilot holes, accelerating assembly workflows and reducing labor costs. Its resistance to thread stripping ensures longevity under mechanical stress common in furniture applications. Compliance with environmental standards ensures that finished products meet market and regulatory expectations. Additionally, its broad bearing pan head supports uniform load distribution, preventing material deformation and facilitating multi-component integration for furniture prototypes and small production runs.

FAQ

What materials are suitable for the Pan Head Phillips Stainless Steel Forming Screw?

Our self tapping screw is designed for use in plastic, nylon, wood, and similar substrates. Thanks to its thread forming design and gimlet point, it efficiently creates threads while reducing drive torque and resisting thread stripping, ensuring reliable fastening in these materials.

Can you provide custom screws or OEM manufacturing services?

Yes, as a leading screw manufacturer, we offer comprehensive OEM/ODM services. You can select from standard fasteners or send us your designs and specifications. We provide tailored solutions to meet your engineering requirements, ensuring quality and consistent supply.

How does the thread forming design benefit assembly and maintenance?

Our screw’s wider spaced threads and forming action reduce driving torque, minimizing damage during installation. This design improves pullout strength and decreases thread stripping, making it ideal for quick assembly in plastics and wood, offering durable and secure joints over time.

Do you offer reliable shipping and stock availability for bulk orders?

We maintain a 1500 sqm warehouse to ensure stock availability and efficient fulfillment. Serving industrial buyers globally, we prioritize transparency and timely deliveries, supporting high-volume orders of self tapping metal screw products for your production needs.
